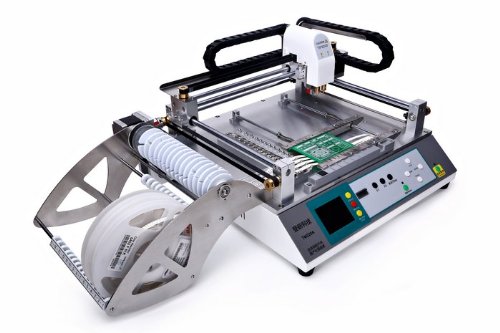

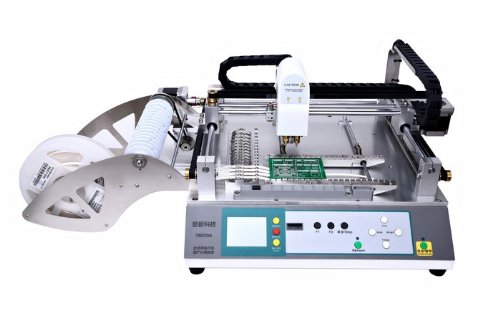

Patent-pending technology applied in automatic picking up.
2000 estimated pph(parts per hour). Placement of 0402 standard (upgrade for smaller parts). Computer vision automatic centering system for IC’s (SOP, QFP, BGA) and better placement of small parts, software fly vision centering.
Features:
• 3500 estimated pph(parts per hour)
• 250mm×400mm working area
• Placement of 0402 standard (upgrade for smaller parts)
• Fully programmable digital Z-axis and Theta rotation angles
• X and Y axis 0.0005″ resolution, 0.001″ positioning, 0.045° rotational resolution
• 60 feeder capacity-standard
• Uses widely available and easily obtainable feeders

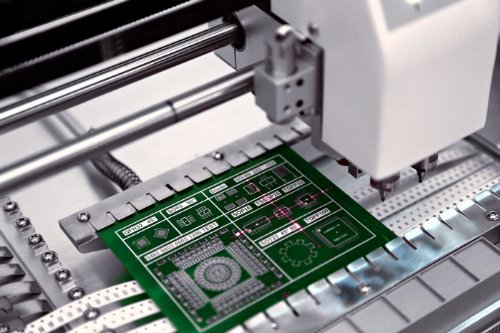

• Automatic PCB board position correction with fiducial recognition included
• Automatic post-place vision inspection
• CAD file convert function
• Selective soldering function built in (optional hot air gun mounting adapter)
• 12 month full factory warranty – parts & labor

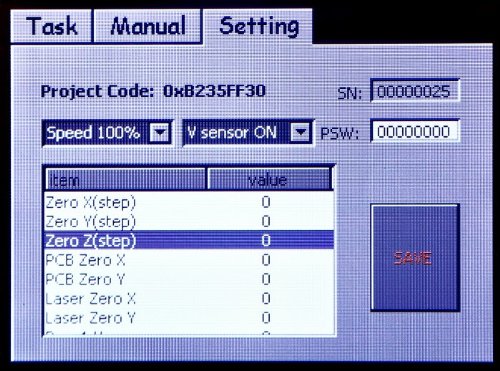

• Easy to use graphic software for quick programming. Programming can be done with teaching video camera, on screen Gerber file graphics or CAD file
• 110V AC 60Hz, or 220 V AC, 50Hz, 750 watts electrical
• 60 psi shop air required
• QM1000 250 lbs. net weight
• 1300mm×1100mm×1300mm
• Machine customization available
Optional:
Options and Feeders:
• Windows XP computer
• Additional up looking cameras (only fixed lens can be used on the video camera for computer vision. Different cameras should be used for small and big parts for best results. Also working speed can be improved if more cameras are placed at different locations close to feeders)
• Tape feeder carrier, required to use tape feeders
• Automatic nozzle changer
• Paste dispensing adapter and control software
• Paste dispenser Gerber file translator software from Dockerty Electronics
• Five channel vibratory feeder for tube parts
Feeder size available 8mm,12mm,16mm,24mm,32mm,44mm.
2000 estimated pph (parts per hour)
13″ x 17″ working area
Placement of 0402 standard (upgrade for smaller parts)
Fully programmable digital Z-axis and Theta rotation angles
X and Y axis 0.0005″ resolution, 0.001″ positioning, 0.045° rotational resolution
